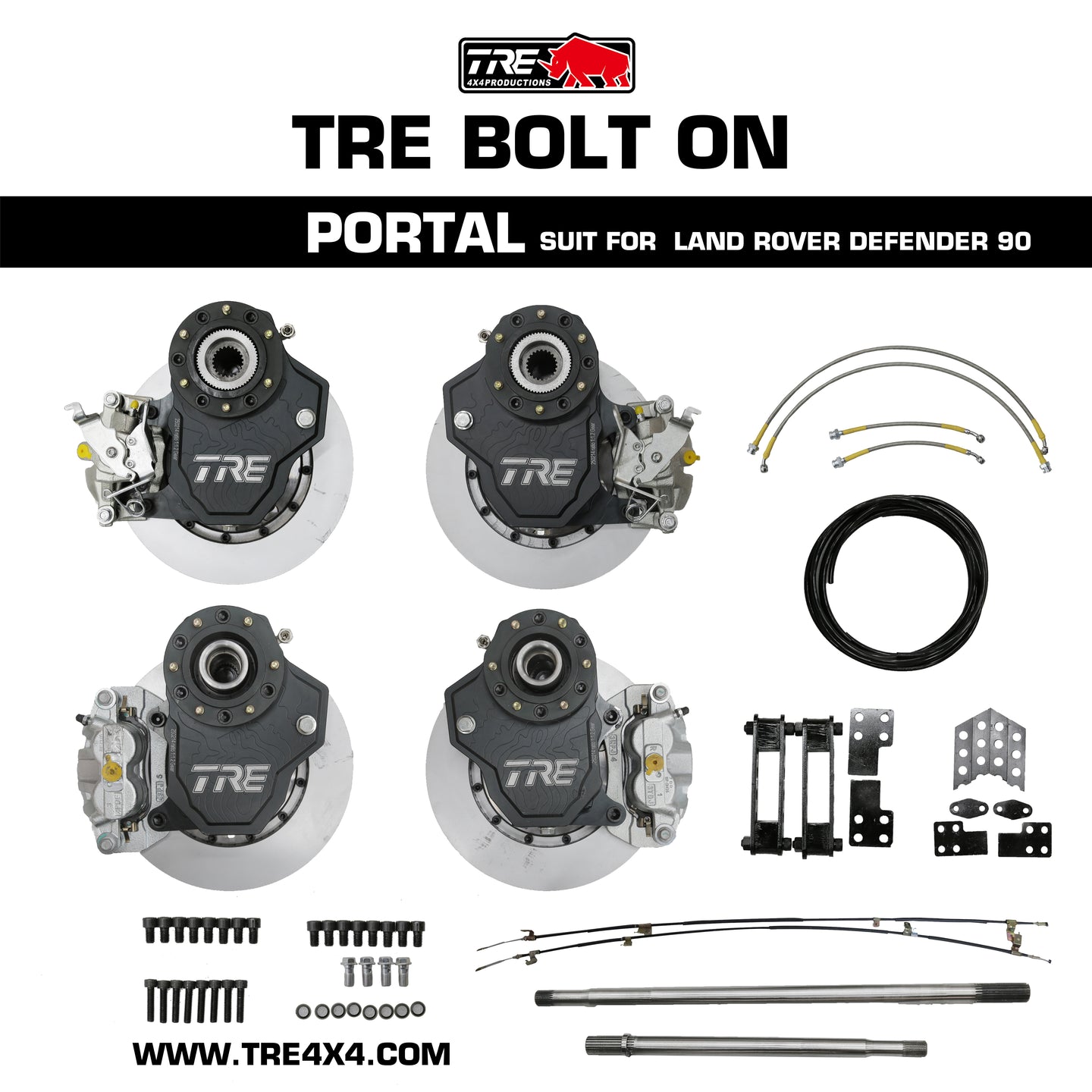

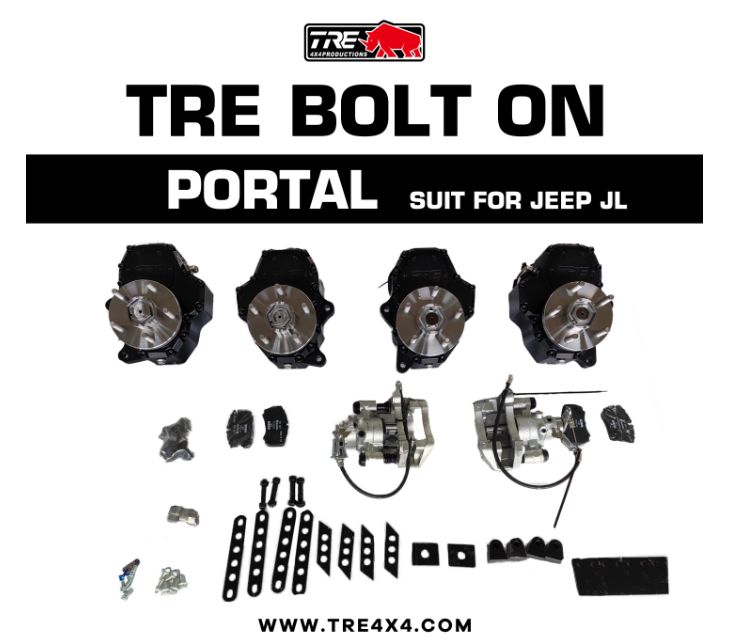

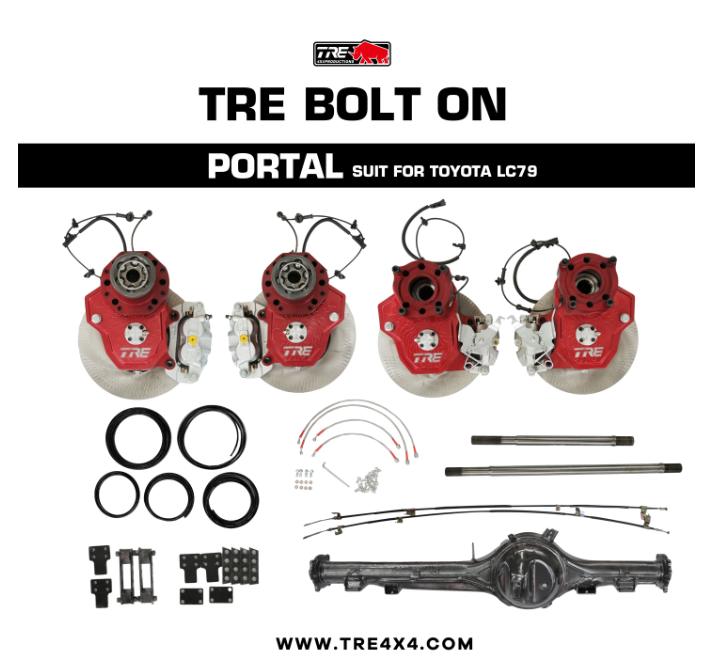

Bolt On Portal Axle

FEATURE

· Increased ground clearance

· Enhanced off-road capabilities

· Larger tire fitment

· Chain -driven and gear-driven bolt on portals optional

GEAR-DRIVEN SPECIFICATION

· Recommended wheel offset: ET+50

· Including Bolt-on Portal, Brake Discs, Brake Calliper, Rear Shaft Axle, Brake Hose, Reinforcement Brackets...

· 4.5inch lift

· Suggested tire size:35 - 40inch

· Bolt on ratio：1:1.2 & 1:1.33

· 1:1.2 & 1:1.33 ratio: 17 inch wheel

CHAIN-DRIVEN SPECIFICATION

· Recommended wheel offset: ET+50

· Including Bolt-on Portal, Brake Discs, Brake Calliper,  Rear Shaft Axle, Brake Hose, Reinforcement Brackets...

· 4.5inch lift

· Suggested tire size:35 - 40inch

· Bolt on ratio：1:1.16/1:1.25/1:1.27/1:1.36 are available

· 1:1.16 / 1:1.25 / 1:1.27 / 1:1.36 ratio: 17 inch wheel

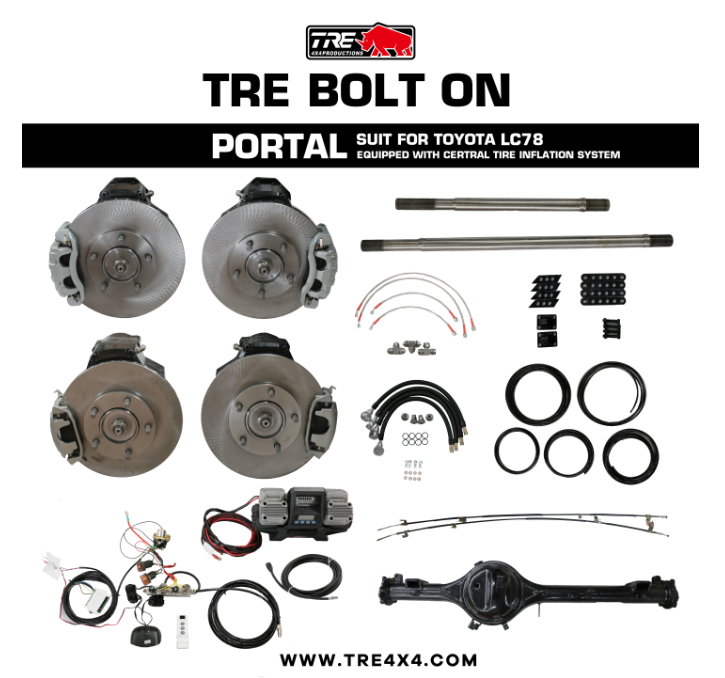

The intesration of TRE4x4 bolt-on portals with Central Tire Infiation Systems (CTIS) enhances vehicle mobillty and performance in challenging terrains.This system allows for dynamic adjustments to tire pressure,maximizingadaptability to varying conditions.
